the key points of the manufacturing process for automotive electronic devices—such as ECUs, ADAS modules, telematics units, and infotainment systems:

1. Design & Validation

  • Automotive-grade design: Components are selected based on AEC-Q standards (e.g., AEC-Q100 for ICs).

  • Redundancy and safety: Functional safety per ISO 26262, especially in ADAS and powertrain modules.

  • Environmental tolerance: Designed for wide temperature range (–40°C to +125°C), vibration, humidity, and EMI resistance.

2. Component Sourcing

  • Use automotive-qualified parts with extended lifecycle, traceability, and certifications.

  • Include microcontrollers , power management ICs, CAN/LIN/FlexRay transceivers, sensors (radar, lidar, image), and memory.

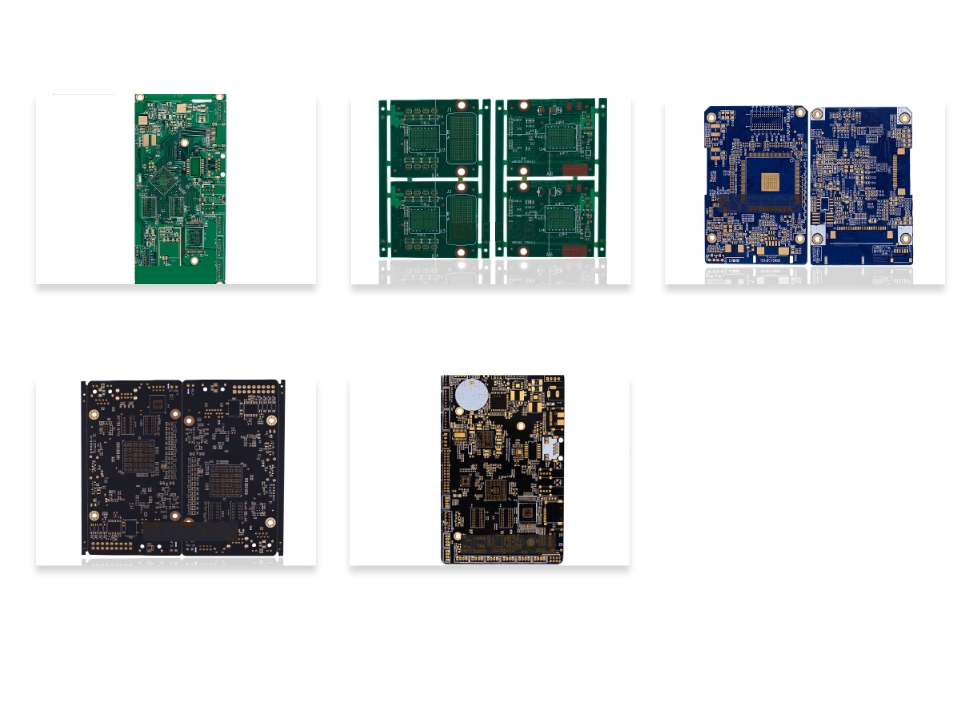

3. PCB Fabrication

  • Often multilayer boards with thick copper for high current paths.

  • Use high-temperature FR-4 or polyimide substrates.

  • Controlled impedance routing for high-speed signals (e.g., radar or infotainment).

4. PCB Assembly (PCBA)

  • SMT process: Surface mount of fine-pitch ICs, power components, connectors.

  • Reflow soldering under nitrogen to improve solder joint reliability.

  • Selective soldering for through-hole automotive-grade connectors.

  • Conformal coating or potting to protect against moisture, vibration, and corrosion.

5. Testing & Inspection

  • AOI (Automated Optical Inspection) and X-ray inspection for fine-pitch BGAs and hidden joints.

  • In-Circuit Test (ICT) and Boundary Scan for signal path and component-level checks.

  • Functional Testing with automotive-grade simulators for CAN, LIN, Ethernet, GPS, etc.

  • Burn-in and thermal cycling to simulate long-term reliability.

6. Software & Calibration

  • Load production firmware, bootloaders, and diagnostics.

  • Calibrate sensors (e.g., cameras, radar) in controlled chambers.

  • Security keys and over-the-air (OTA) provisioning may be added (e.g., for telematics).

7. Traceability & Quality Control

  • Assign unique serial numbers, lot IDs, and MAC addresses.

  • Log process data into MES (Manufacturing Execution Systems).

  • Perform PPAP (Production Part Approval Process) per automotive supply chain requirements.

8. Packaging & Delivery

  • ESD-safe packaging with anti-vibration cushioning.

  • Labeling meets OEM-specific and global regulatory standards.

  • Just-in-time (JIT) logistics to support automotive OEM schedules.
